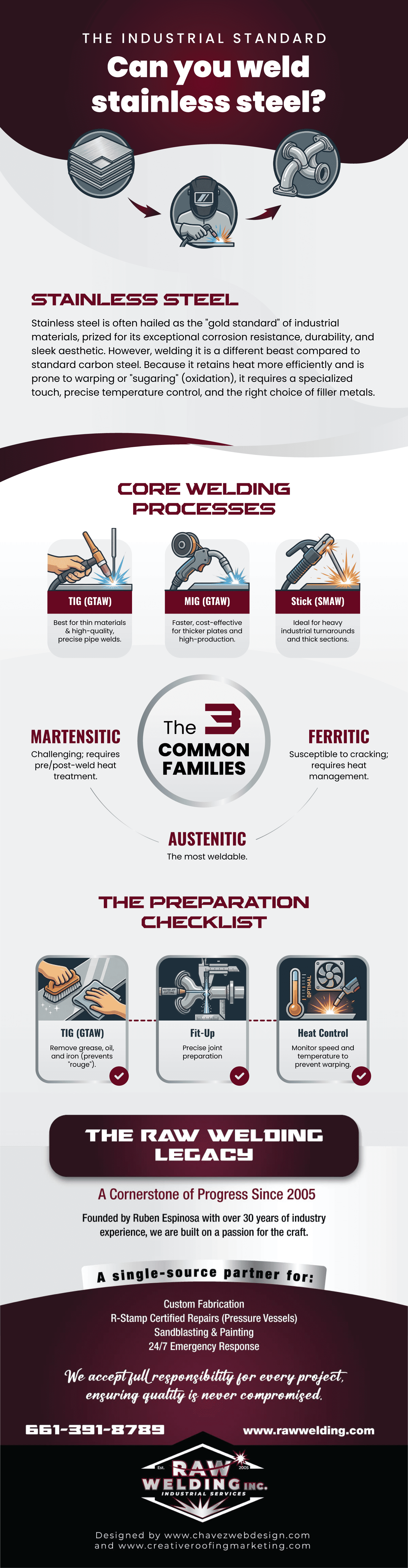

💡 Yes, You Can Weld Stainless Steel: A Guide to the Industrial Standard
The question of “can you weld stainless steel?” is common, and the answer is a resounding yes. Stainless steel is one of the most widely used and versatile materials in industrial services, thanks to its exceptional strength and corrosion resistance.
Welding stainless steel is a precise and specialized skill essential for creating durable components across various sectors like food processing, oil fields, and refineries. It requires knowledge of specific techniques and fillers to maintain the metal’s unique properties.
Choosing the Right Welding Process for Stainless Steel
Selecting the correct welding process is critical to ensure the weld retains the stainless steel’s corrosion resistance and structural integrity. The high chromium content that makes stainless steel rust-proof can be compromised by improper heat control during welding. Several different welding methods are routinely employed for this material.
- Gas Tungsten Arc Welding (GTAW or TIG): TIG is the preferred method for stainless steel when high-quality, precise welds are needed. It provides excellent control over heat and penetration, which helps prevent carbide precipitation and discoloration. This method is often chosen for pipe welding and thin-gauge materials. Learn more about our precise Metal Pipe Welding.
- Gas Metal Arc Welding (GMAW or MIG): MIG is a faster, more cost-effective option for welding thicker stainless steel plates. It is an excellent choice for high-production environments where speed and efficiency are key. Specialized shielding gases and wire are used to protect the weld pool from atmospheric contaminants.

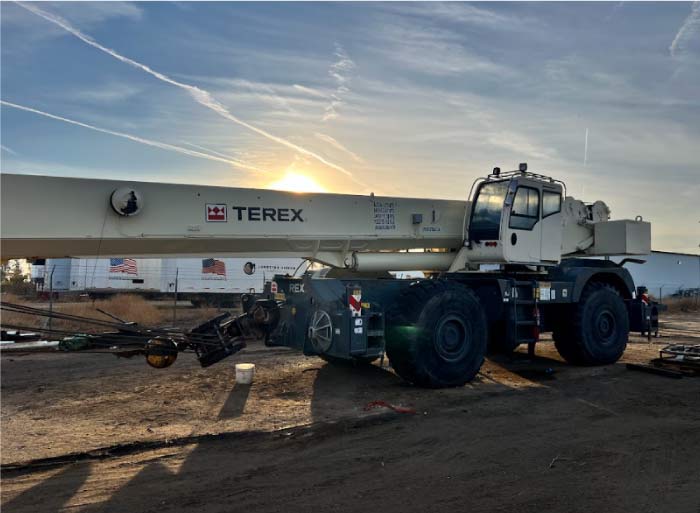

- Shielded Metal Arc Welding (SMAW or Stick): Stick welding is primarily used for thicker sections in heavy industrial applications, such as scheduled outages and turnarounds. While versatile, it requires careful selection of flux-coated electrodes to match the stainless steel grade being welded. See how this applies to large-scale projects: Crane, Turnarounds & Shutdowns.
Understanding the Importance of Stainless Steel Grades
The family of stainless steel includes hundreds of different grades, and each grade requires a specific approach during welding. The three most common families are austenitic, ferritic, and martensitic. Austenitic grades, like 304 and 316, are the most weldable due to their microstructure.
Ferritic and martensitic stainless steels are more challenging to weld because they are susceptible to cracking and embrittlement. They often require pre-heating and post-weld heat treatments to achieve the necessary durability. An experienced welder will always identify the specific grade to apply the correct process, filler material, and heat management techniques.
Essential Welding Preparation and Technique
Proper preparation is as important as the welding process itself when you can you weld stainless steel. The material’s surface must be completely free of contaminants like grease, oil, and iron particles. Even minor rust from carbon steel tools can compromise the finished weld’s corrosion resistance, a concept known as “rouge.”
- Cleaning: Surfaces should be cleaned with dedicated stainless steel brushes and solvents. This prevents contamination from interfering with the welding process and weakening the joint.
- Weld Fit-Up: Precise joint preparation, whether beveling or grooving, is essential for achieving full penetration and a strong, lasting connection. Our Metal Fabrication shop uses a high-powered water jet capable of precisely cutting metals up to 5 inches thick for perfect fit-ups.
- Heat Management: Controlling the heat input is vital to avoid warping and to prevent the loss of corrosion-resistant properties. Utilizing proper travel speed and interpass temperature monitoring is key to success.
Post-Weld Care and Finishing
After the weld is complete, the immediate area will likely have a heat-affected zone that is discolored and may have reduced corrosion resistance. This is often visible as a blue or brown tint, called “sugaring” on the backside of the weld. Post-weld cleaning is necessary to restore the material’s properties.
Processes like pickling, passivation, and mechanical grinding and polishing are used to remove the scale and oxidized layers. In some industrial settings, Industrial Maintenance services may include sandblasting and painting for a full-service surface preparation and finishing solution. A professional finish is not just aesthetic; it’s a necessary step for ensuring long-term operational excellence.
The RAW Welding Difference in Stainless Steel Projects
Raw Welding Inc. specializes in the complex world of industrial services, where the precision of stainless steel welding is a daily necessity. With over 30 years of industry experience, our team is certified in all welding processes and proficiently handles all types of metals, including stainless steel and specialized alloys.

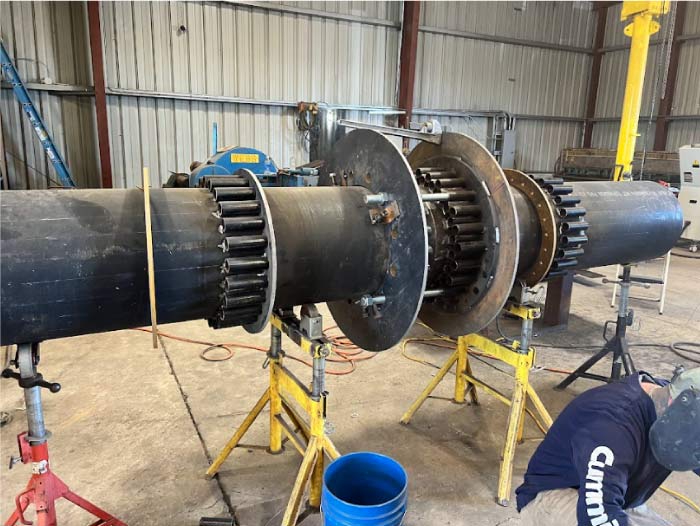

We embrace new technologies like advanced water jet cutting and hold an R stamp certification, demonstrating our commitment to the highest standards in pressure vessel repair and alteration. This dedication to quality craftsmanship and adaptability makes us the indispensable partner for our clients’ most ambitious projects.
Reliable and compliant work is a priority. For instance, the American Welding Society (AWS) publishes detailed specifications and codes for welding various materials, including stainless steel, ensuring uniform high quality across the industry. We remain committed to following these strict industry standards and prioritizing safety on every job.
